Arduino_can_module_MCP2515

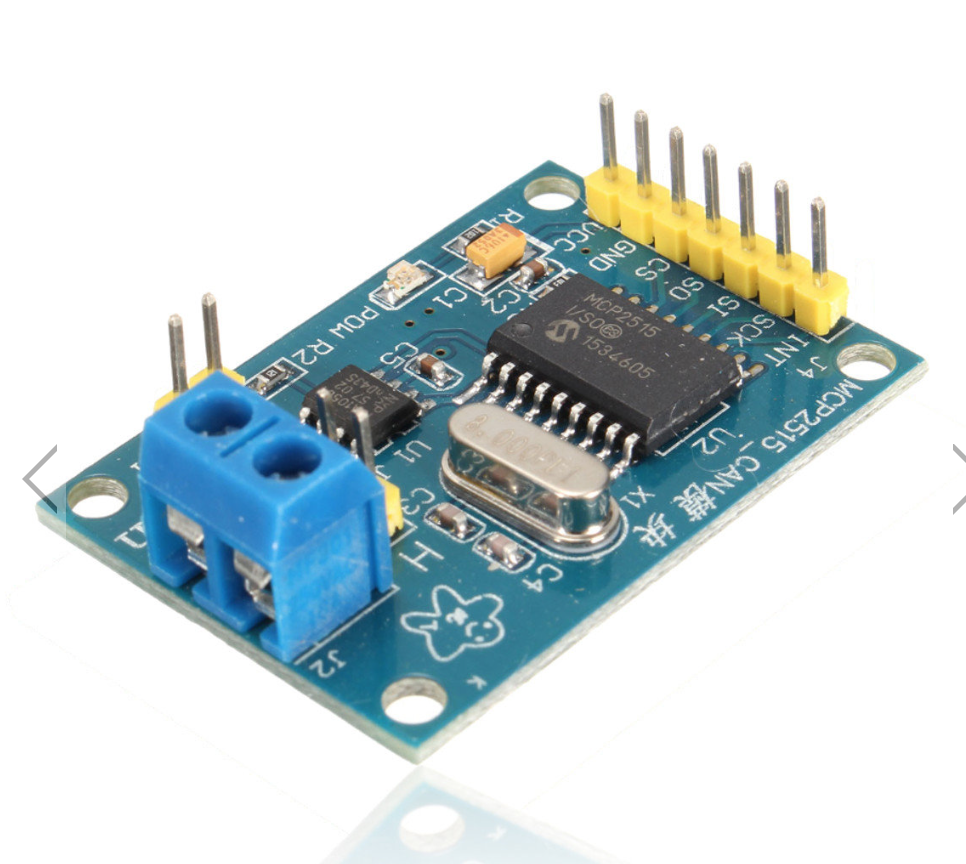

D33 MCP2515 CAN Bus Module TJA1050 Receiver SPI Protocol

Support CAN V2.0B specification, the communication speed 1Mb / S

0 to 8-byte data field

Three frames - standard, expand the frame and remote

DC5V power supply module & SPI interface protocol control

120 ohm termination resistors, Impedance matching, ensure drive capacity, long-distance data transmission against signal radiation

Module dimensions - 4 x 2.8 cm / 1.57 x 1.1" (approx.)

Working Current - typ. 5mA & 1μA standby current

Working Temperature - (Industrial grade) -40 ℃- +85℃

Package Included:

1 x MCP2515 CAN bus module TJA1050 receiver
